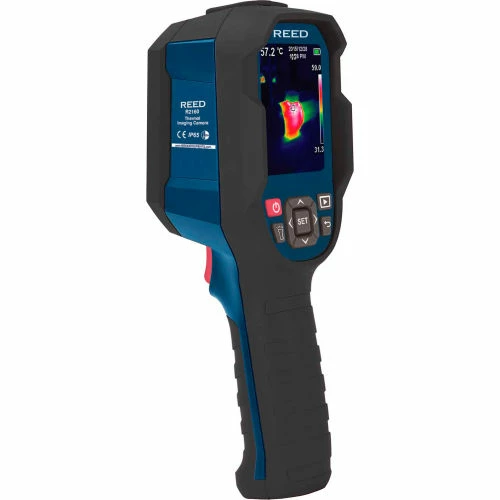

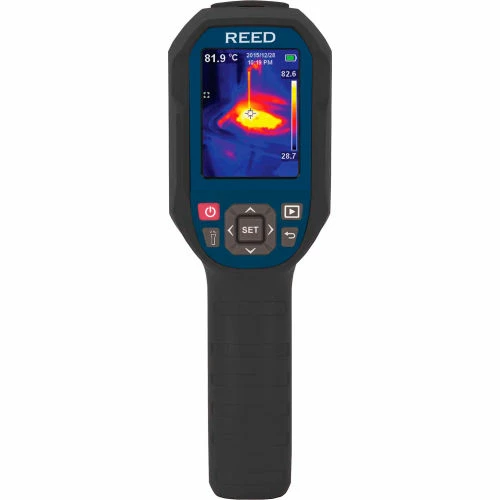

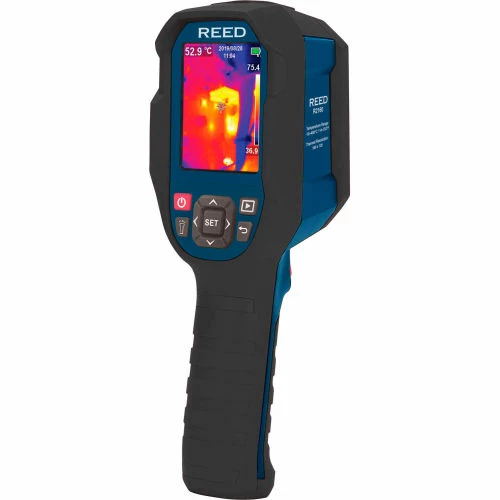

Reed Instruments Thermal Imaging Camera, 160 x 120 Pixels, 14 and 752°F

This thermal imaging camera features a 160 x 120 (19,200 pixels) infrared sensor that can detect temperatures between 14 and 752°F (-10 and 400°C). The R2160 has the ability to display hot and cold spot temperatures on a 2.8″ color LCD and allows a user to choose from 5 different color palettes.

Features

• 160 x 120 infrared resolution (19,200 pixels)
• 2.8″ color TFT Display
• Built-in LED flashlight
• Choice of 5 color palettes
• High and Low temperature spot and alarm indicators
• Dustproof and 6.5′ (2m) drop tested
• Rechargeable li-ion battery
• Tripod mountable for continuous long-term monitoring
• View stored data with included software
• Low battery indication and auto shut off

Imaging and Optical Specifications

• Field of View (FOV): 56 x 42°
• Minimum Focus Distance: 0.82′ (0.25m)
• Spatial Resolution: (IFOV) 11mrad
• Thermal Sensitivity (NETD): <0.05°C (50mK)
• Image Capture Frequency: 9Hz
• Focus: Fixed

Measurement

• Temperature Range: 14 to 752°F (-10 to 400°C)
• Accuracy: &177;3.6°F (2°C) or ±2% of reading
• Resolution: .1°F/°C

Detector Specifications

• Detector Type: Uncooled microbolometer, Focal plane array (FPA)
• Spectral Range: 8 to 14μm
• IR Resolution: 160 x 120 (19,200 pixels)

Image Presentation and Measurement Analysis

• Display: 2.8″ color TFT
• Color Palettes: 5 (Iron/Rainbow/Gray/Red-White/White-Blue)
• Center Spot: Yes
• Emissivity: Adjustable (0.01 to 0.99)
• Temperature Alarm Indicators: High/Low (user adjustable)
• Automatic Hot/Cold Detection: Auto hot or cold spot-meter markers
