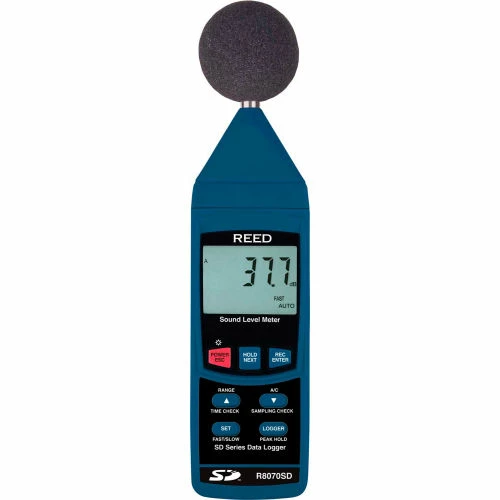

Reed Instruments Data Logging Sound Level Meter

This R8070SD has triple range measurement and features Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 to 3600 seconds. Quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring.

Features:

• High accuracy of ±1.0dB to 1kHz meets Type 2 standards
• Triple range measurement (50dB dynamic range)
• A & C frequency weighting
• Fast & Slow time weighting

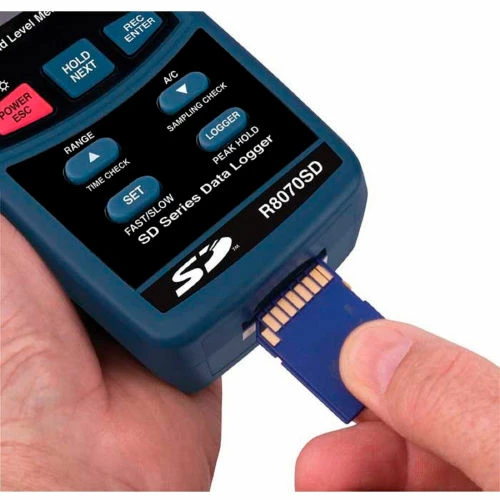

• Real-time data logger with integrated SD memory card
• User selectable sampling rate from 1 to 3600 seconds
• Peak hold, Data hold and Min/Max hold
• Easy-to-read backlit LCD display
• Tripod mount for long-term monitoring
• Low battery indicator and auto shut off

Measuring Ranges:

• 30 to 130dB
• Low: 30 to 80dB
• Med: 50 to 100dB
• High: 80 to 130dB
• Full: 30 to 130dB

Accuracy:

• 31.5Hz ±3.0dB
• 63Hz ±2.0dB
• 125Hz ±1.5dB
• 250Hz ±1.5dB
• 500Hz ±1.5dB
• 1kHz ±1.0dB
• 2kHz ±2.0dB
• 4kHz ±3.0dB
• 8kHz ±5.0dB

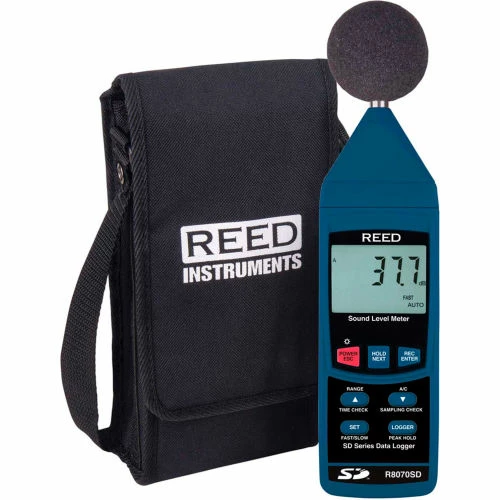

Package Contents:

• Data Logging Sound Level Meter
• Windshield Ball
• Soft Carrying Case
• Batteries
