Mark-10® Series 2 Economical Digital Force Gauge - 50 lbF Capacity

Mark-10® Series 2 Economical Digital Force Gauge - 50 lbF Capacity - Image 2

Mark-10® Series 2 Economical Digital Force Gauge - 50 lbF Capacity - Image 3

Mark-10® Series 2 Economical Digital Force Gauge – 50 lbF Capacity

Original price was: $510.00.Current price is: $91.99.

SKU: Mark-10 WBB937210 Categories: Force Gauges, Non Electrical Properties Testing, Testing & Inspection Instruments Tags: ±0.5 Percent of ull Scale °F, 150 Percent of Full Scale, 40-100°F, 92 Hours (Backlight Off), 24 Hours (Backlight On), 95 Percent Non-Condensating, Mark-10, Series 2, Tools & Instruments

Buy with Confidence, Get Quality
Your happiness, our mission.
No-Questions-Asked Returns
Excellent customer service online in a timely manner

Mark-10® Series 2 Economical Digital Force Gauge – 50 lbF Capacity

Series 2 digital force gauges are designed for basic tension and compression force testing applications up to 100 lbF (500 N). Peak tension and compression readings are reliably captured via the gauges’ ±0.5% accuracy and 500 Hz sampling rate. A backlit graphic LCD displays the current, peak tension, or peak compression reading. The gauges are overload protected to 150% of capacity. An ergonomic, reversible aluminum housing allows for hand held use or fixture mounting, rugged enough for applications in both production and laboratory environments. Series 2 gauges are directly compatible with Mark-10 test stands and grips.

Features:

Calculates peak tension and compression values
3 selectable units of measurement
Ultra-compact, ergonomic housing
Configurable default measurement unit and mode
500 Hz sampling rate
Large, backlit graphic display with auto-dimming
Powered by 9V battery or available AC adapter

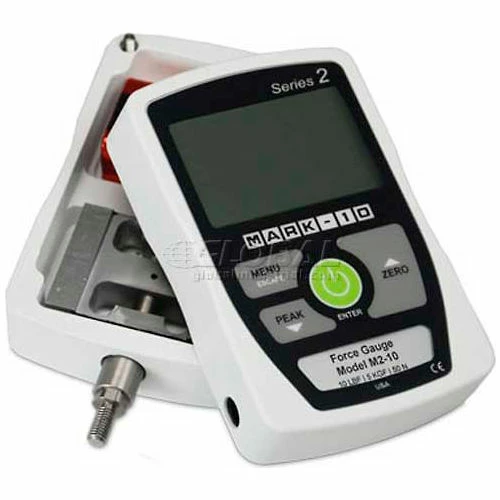

Reversible housing for alternate load cell orientation

Includes:

9V Battery
Quick-Start Gauge
Resource CD
Certificate of Conformance

Height	1.5 in
Resolution	0.05 lbF / 0.02 kgF / 0.02 N
Brand	Mark-10
Manufacturers Part Number	M2-50
Description	Economical Digital Force Gauge
Sampling Rate	500 Hz
Capacity	50 lbF / 25 kgF / 250 N
Power Source	AC Adapter or 9V Non-Rechargeable Battery
Measurement Units	lbF, kgF, N
Length	4.76 in
Operating Humidity	95 Percent Non-Condensating
Operating Temperature	40-100°F
Accuracy	±0.5 Percent of ull Scale °F
Safe Overload	150 Percent of Full Scale
Battery Life	92 Hours (Backlight Off), 24 Hours (Backlight On)
Type	Series 2
Width	2.53 in
Warranty	3 yr
