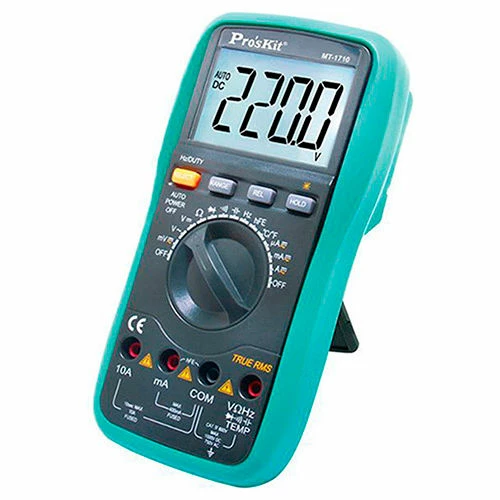

Eclipse MT-1710 – True RMS DMM

Features:

• 3-3/4 True-RMS AutoRange Multimeter
• 3 3/4 digits 3999 counts. 0.5% best accuracy
• Both Auto and Manual range
• CAT IV 600V safety rated
• AC True-RMS for accurate measurements
• Large backlit LCD display for easy reading
• Extra functions: Continuity with beeper, Diode test, Transistor test, Duty cycle, Relative reference, Data hold, Auto power off, Low battery indication, Input alert. Ideal for a wide variety of electrical and electronic testing applications
• DC Voltage (V) 400m/4/40/400V ±(0.5%+4d)
• 1000V ±(1.0%+6d)
• AC Voltage (V)
• True-RMS 40~1kHz(sine and triangular wave)and 40~200Hz(other wave):
• 400mV ±(1.6%+8d)
• 4/40/400/750V ±(1.0%+10d)
• 200~1kHz(other wave):
• 400m/4/40/400/750V ±(8.0%+15d)
• DC Current (A) 400u/4000uA ±(1.0%+10d)
• 40m/400mA ±(1.2%+8d)
• 10A ±(1.2%+10d)
• AC Current (A) True-RMS 40~1kHz(sine and triangular wave)
• and 40~200Hz(other wave):
• 400u/4000u/40m/400mA ±(1.5%+10d)
• 10A ±(2.0%+15d)
• 200~1kHz(other wave):
• 400u/4000u/40m/400m/10A ±(8.0%+15d)
• Resistance (Ω) 400Ω ±(0.8%+5d)
• 4k/40k/400k/4MΩ ±(0.8%+4d)
• 40MΩ ±(1.2%+10d)
• Frequency (Hz) 100/1000/10k/100kHz ±(0.5%+10d)
• 1M/30MHz ±(0.5%+10d)
• Capacitance (F) 10n ±(5.0%+20d) 100n/1u/10u/100uF ±(3.5%+8d)
• 1/10/100mF ±(5.0%+10d)
• Temperature (°C/°F) -20~400°C (-4~752°F) ±(1.0%+5d)
• 400~1000°C (752~1832°F) ±(1.5%+15d)
• Power source 9V (NEDA 1640/6F22) battery
• Size (mm) 7.5 x 3.75 x 1.75 9 inches
